CWT CURRENT APPLICATIONS
(VHT) Vertical Heater Treater
Safe, Silent, Long Life
No moving parts like motors and pumps
Silent operation
Low pressure (2 oz) utility or well head gas supply
Flame arrested air intake built to US Coast Guard standard
ASME Section IV vacuum boiler design
Operates on 26 psig vacuum to 250 degrees F
Certified Non-incendive electrical control system
Operates 21 feet from tank in general purpose area
Reduces emissions and fuel gas consumptions by up to 50 percent
Operates at 75 to 80 percent thermal efficiency
No electricity required
No special boiler certifications to operate in class one zone two hazardous location
(HHT) Horizontal Heater Treater
We Have seen an increase in horizontal treater firetube failures. With a horizontal treater able to treat more overall fluid than a vertical treater can. This makes the horizontal treater firetube failures catastrophic.
By utilizing the CWT Indirect heating system an operator can eliminate this problem. By heating the oil indirectly and pulling out the firetube and inserting the CWT systems heat exchanger, you eliminate the thermal degradation that causes most of the firetube failures.
HHT Options

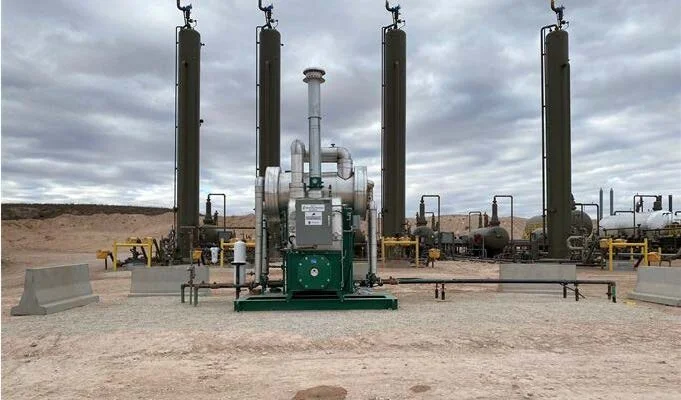

CWT Dual Unit Benefits
With CWT we can now heat two vessels with one CWT unit utilizing our dual unit system. This is an added cost benefit to the producer and can divide the cost of the system over two wells.
CWT DUAL UNIT LAYOUT

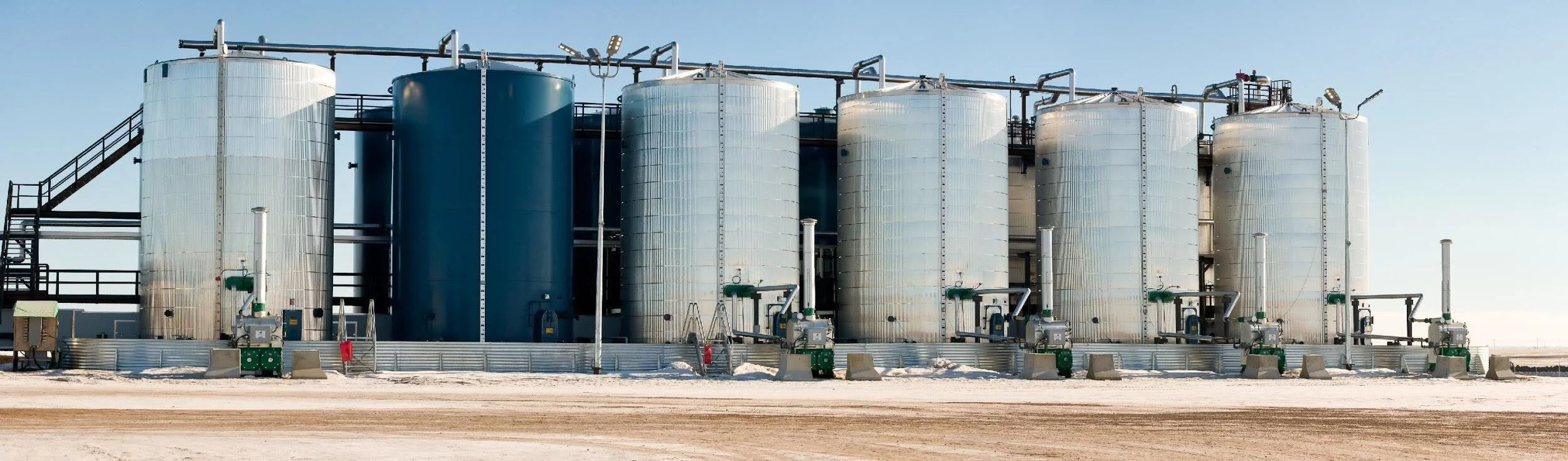

CWT TANK HEATING
TANK HEATING OPTIONS

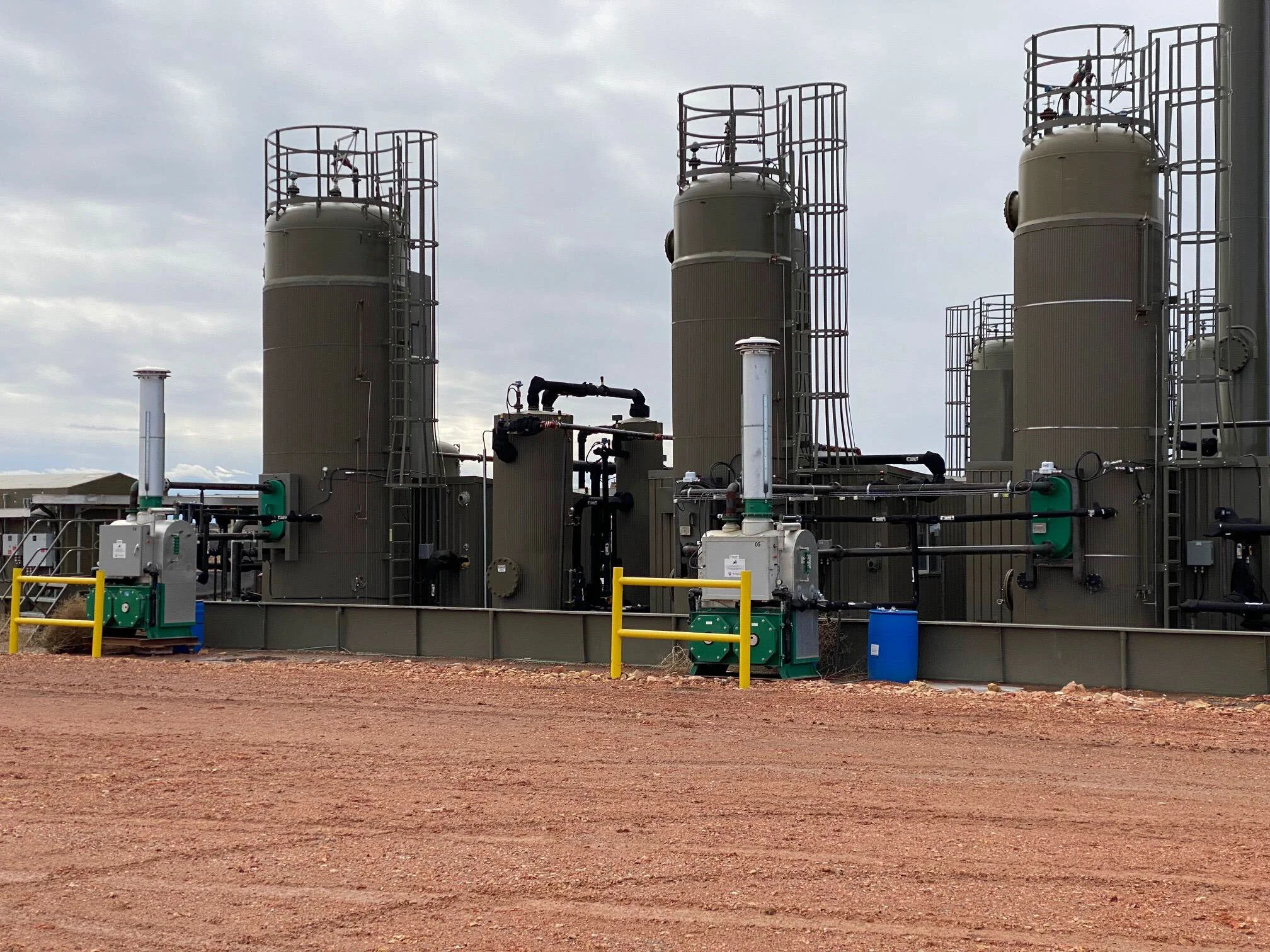

CWT VRT HEATING
CWT for VRT
With the use of a recirculation pump the CWT indirect heating system makes it very cost effective when heating several different types of vessels including towers. This allows for an easy retrofit on older locations and will give operators more options and flexibility on new locations.
